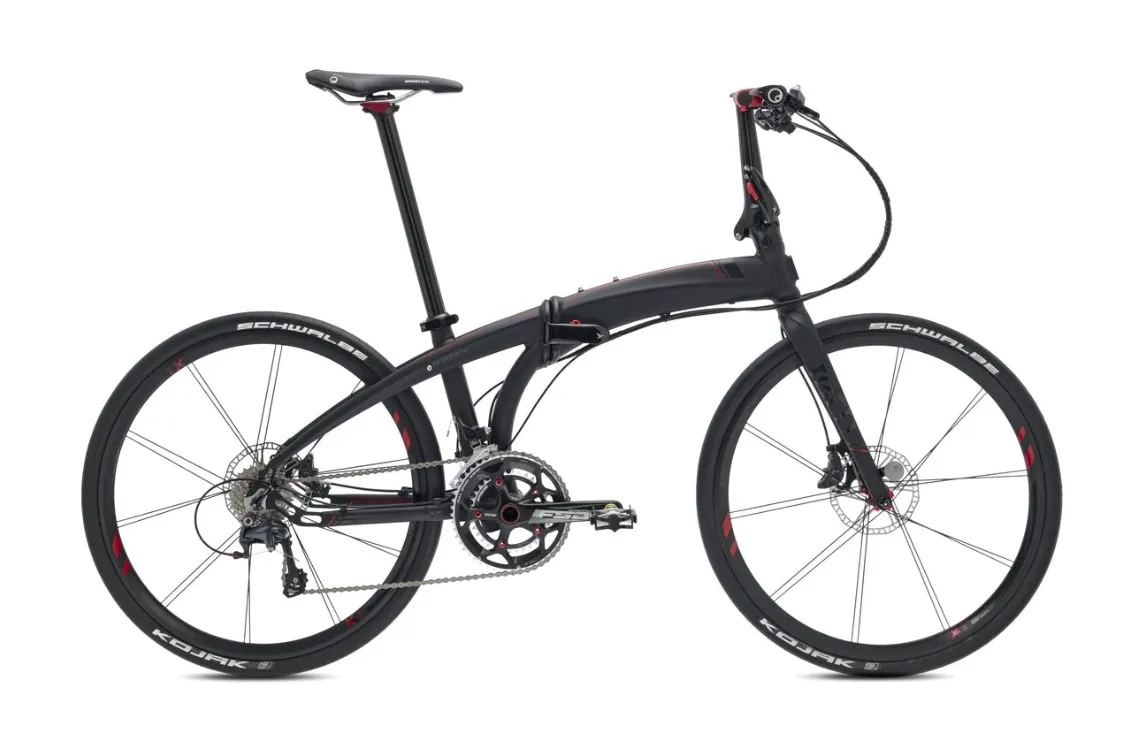

Eclipse X22 誕生的意義就是成為世界上速度最快的折疊式自行車，手工打造的 26” 輪組，加上幾何形狀的車架，與全尺寸的公路車看起來沒太大的差異，但它的折疊時間僅需 10 秒。此外，它擁有 ULTEGRA 的傳動系統，正好合符國際新規格，加上隱形般的外觀及液壓成形的前叉，令 X22 成為 TERN 的新里程碑。
-Kinetix Pro X 26” 輪組 with straight-pull Sapim spokes for a blazingly fast ride
-Shimano Ultegra/105 傳動系統
-Shimano 油壓碟剎，為急剎提供更大的力量
-可調節式 VRO 車把，讓你微調座位時更方便
-高性能的 Kojak 公路外胎，並備有防爆胎保護
-折疊後更方便放於室內，防盜更佳
Specifications
General Info
Speeds:
2 x 11
Weight:
11.3 kg (24.9 lb)
Gear Inches:
30" - 112" (2.38 - 8.92 m)
Folding Size:
42 × 89 × 81 cm (16.5 × 35 × 31.9 in)
Folding Time:
10 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
77 - 104 cm (30.3 - 40.9 in)
Suggested Rider Height:
148 - 195 cm (58.3 - 76.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Rider Weight:
105 kg (231.5 lb)
Frame
Frame:
Tern Eclipse, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies, Tern Eclipse, hydroformed aluminum w/ smooth TIG welding, OCL joint, 3 patented technologies
Fork:
Tarsus, 6061-AL, hydroformed
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm
Stem:
Syntace VRO, adjustable, Built for Tern
Headset:
Flux Pro, angular contact bearings, Physis integrated
Handlebar:
Kinetix Pro X, 7050-Al, multi-stage butted
Grips/Bar Tape:
Ergon GX1 Leichtbau
Saddle:
Ergon SMC10 Sport Gel
Seatpost:
Stasis by Syntace, 7050-AL, hard-anodized
Seatpost Clamp:
Stasis by Syntace, 7050-AL, hard-anodized
Brakes
Front Brake:
Shimano Deore, hydraulic disc
Rear Brake:
Shimano Deore, hydraulic disc
Brake Levers:
Shimano Deore, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic
Wheels
Front Hub:
Kinetix Pro X Disc, 20H, straight-pull
Rear Hub:
Kinetix Pro X Disc, 20H, straight-pull, asymmetric flange
Spokes and Nipples:
Sapim CX-Sprint, internal Polyax nipples
Rims:
Kinetix Pro X, 6061-T10 aluminum, patented Rolf Paired Spoke design
Tires:
Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Transmission
Shifter(s):
Shimano Ultegra trigger, 2x11 spd
Front Derailleur:
Shimano 105
Rear Derailleur:
Shimano Ultegra
Crankset:
FSA Gossamer Pro, 50/34T, BB386 oversized aluminum spindle
Cassette/Freewheel:
Shimano 105, 11-28T, 11 spd
Bottom Bracket:
FSA MegaEVO, BB386
Chain:
Shimano 105, 11 spd
Pedals:
MKS UB-LITE EZY, QR
Shifter Cable & Housing:
Jagwire LEX-SD, ultra-slick polymer coating, alloy ferrules
Bells & Whistles
Bell:
Pitch, Brass
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Rear Light:
BioLogic TailLight
